Do you make common controls with consistent widths?
Loading last updated info...
There are a few common controls we always use in our products. For example, DateTime and Ellipsis Button. We need a standard for the width so the controls should be more consistent.
Note: Controls on base forms will be made to be 'protected' rather than 'private', especially so that inherited forms of different sizes don't mess up.

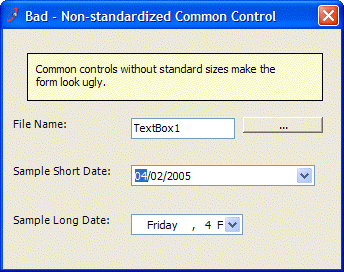

❌ Figure: Bad example - Control sizes are not consistent

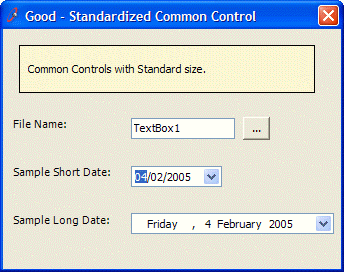

✅ Figure: Good example - Control sizes are all standard and consistent

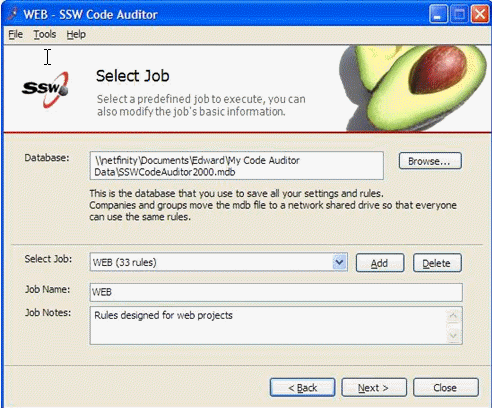

❌ Figure: Bad example - Non-standard size for Add & Delete buttons

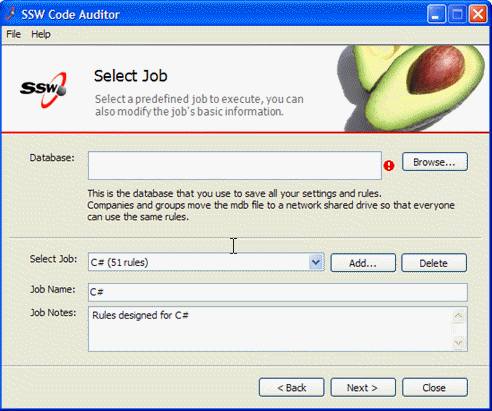

✅ Figure: Good example - Standard size for Add & Delete buttons
We have a program called SSW Code Auditor to check for the following two rules:
Rule - C#/VB.NET UI- Button Height and Width - for Standard Button (75 x 23 pixels)
- Level 2: All buttons < 6 characters:** Check the standard size (75 X 23 pixels) for buttons with the word length less than or equal to six characters, except the following buttons.
- Level 1: The action buttons:** Check the standard size (75 X 23 pixels) for the following action buttons:
- Add
- Delete
- Edit
- OK
- Close
- Cancel
- Save
- Browse
- Select
- Test
- Next
- Back
- Remove
- Refresh (Exception to the rule as it has 7 letters)
