Do you create a combo-box that has a custom template?

Last updated by Tiago Araújo [SSW] about 1 month ago.See history

When designing your form, you should try to help your user whenever it's possible. So it's a good idea to create a combo-box that has a custom template.

multiplecolumns 1710232021932

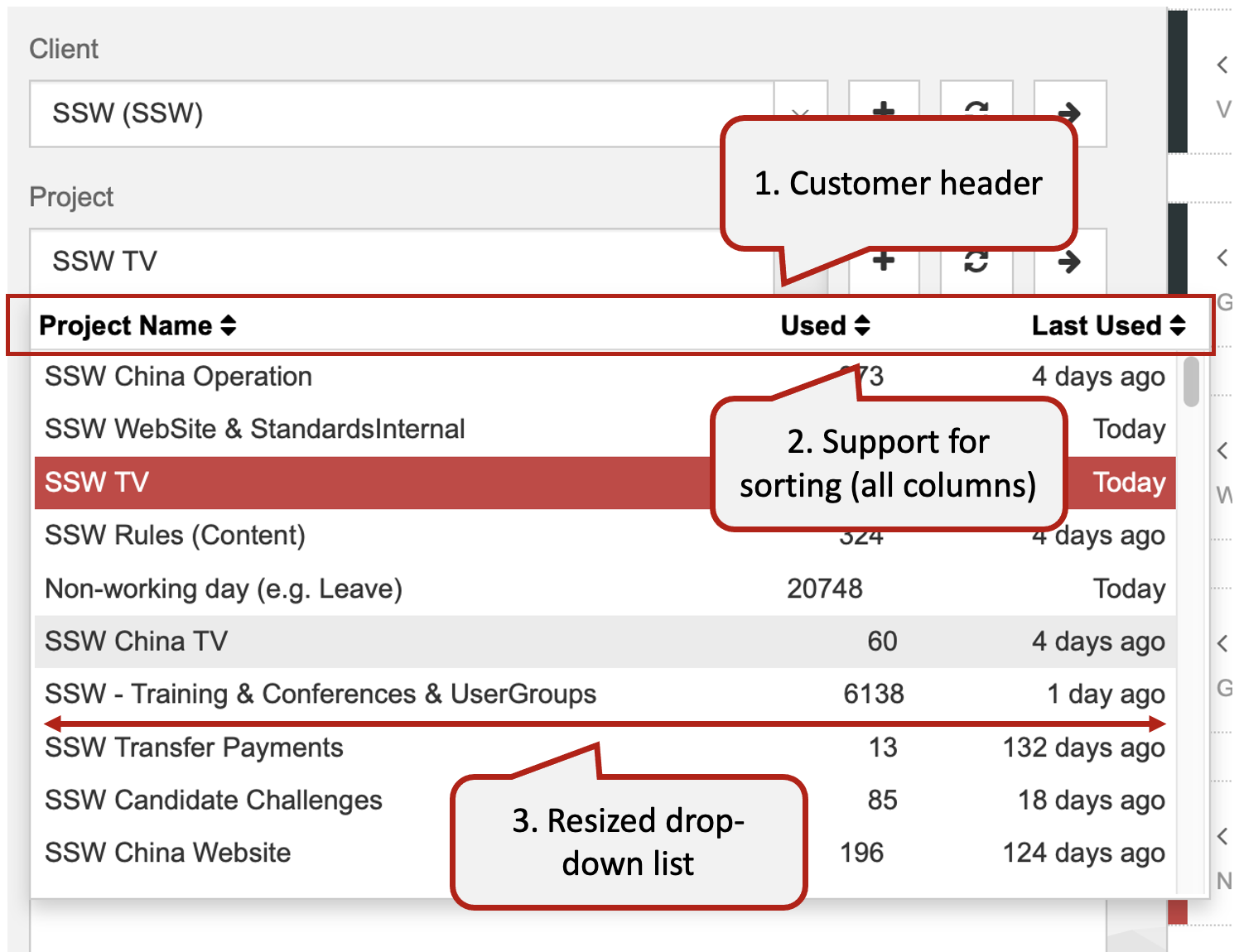

Figure: Good example – Combo-box with custom template

Feel free to use our sample:

  1. Download and install Kendo UI Controls from Kendo UI
  2. HTML (Razor) - Create a combo-box that has a custom template. Use a code bellow as an example:
@(Html.Kendo().ComboBoxFor(x => x.EmpTime.ProjectID)
.AutoBind(true)
.Suggest(true)
.Delay(300)
.DataSource(source => source.Read(read => read.Action("ProjectNameAjaxBind", "Ajax")
.Data("function() { return {clientId : getClientId()}; }")
.Type(HttpVerbs.Post)))
.Height(450)
.DataTextField("DisplayText")
.DataValueField("Value")
.Filter(FilterType.Contains)
.Template(@"
<table class='comboBox-Projects'>
<tr>
<td class='projectName'>${data.DisplayText}</td>
<td class='projectTotalCount'>${data.UsedCount}</td>
<td class='projectLastUsed'>${data.LastUsedText}</td>
</tr>
</table>
")
.HighlightFirst(false)
.IgnoreCase(true)
.Events(e => e.Change("projectChanged").Open("onProjectOpened"))
)
  1. CSS - Customize the look & feel to suit your needs. Example:
#projectsTableBorder {
 border-bottom: 1px solid rgb(217, 217, 217);
 margin: 0 -2px;
 }
 .comboBox-Projects#projectsHeader {
 color: black;
 font-weight: bold;
 margin: 4px 16px 4px 4px;
 }
 .comboBox-Projects td.projectName {
 width: 400px;
 text-align: left;
 }
 .comboBox-Projects td.projectTotalCount {
 width: 70px;
 text-align: right;
 padding-right: 16px;
 }
 .comboBox-Projects td.projectLastUsed { text-align: left; }
 #projectNameHeader:hover, #projectTotalCountHeader:hover, #projectLastUsedHeader:hover {
 cursor: pointer;
 text-decoration: underline;
 }
  1. JavaScript - Use JavaScript to change the combo-box's behavior. Example:
// resize the drop-down list
function resizeComboBoxList(comboBoxListId, width) {
 var list = $(comboBoxListId);
 list.width(width);
 var height = list.height();
 list.children("ul").height(height - 25);
}
function onProjectOpened() {
 resizeComboBoxList("#EmpTime_ProjectID-list", 600);
}
// execute sorting when a header column is clicked
function onClick_ColumnHeader(senderId, comboBoxId, fieldName) {
 var column = $(senderId);
 column.unbind('click');
 column.click(function() {
 sortComboBoxBy(comboBoxId, fieldName);
 });
}
// sort any combo-box based on a field name
function sortComboBoxBy(comboBoxId, fieldName) {
 var comboBox = $(comboBoxId).data("kendoComboBox");
 var sortDescriptors = comboBox.dataSource._sort;
 var direction = "asc";
 if (typeof(sortDescriptors) != "undefined") {
 var sortDescriptor = sortDescriptors[0];
 if (typeof(sortDescriptor) != "undefined") {
 if (sortDescriptor["field"] == fieldName) {
 if (sortDescriptor["dir"] == "asc") {
 direction = "desc";
 }
 }
 }
 }
 comboBox.dataSource.sort({
 field: fieldName,
 dir: direction,
 });
}
// prepare
$(document).ready(function() {
 var projectsId = "#EmpTime_ProjectID";
 var projectsListId = projectsId + '-list';
 // prepend header to combo-box list. By default you only get <ul>
 $("

Project Name</td>" +
 "<td id='projectTotalCountHeader' class='projectTotalCount'>Used</td>" +
 "<td id='projectLastUsedHeader' class='projectLastUsed'>Last Used</td>" +
 "</tr></table>" +
 "</div>")
 .prependTo(projectsListId);
 // register click events for each column
 onClick_ColumnHeader('#projectNameHeader', projectsId, "DisplayText");
 onClick_ColumnHeader('#projectTotalCountHeader', projectsId, "UsedCount");
 onClick_ColumnHeader('#projectLastUsedHeader', projectsId, "LastUsedValue");
});
});
