Do you know how to upgrade your TFS2010 databases? (the big one)

Created on 11 Jun 2012 | Last updated by Christian Morford-Waite on 26 Feb 2021 05:05 AM (about 2 months ago)

We recommend doing a move to a new environment because it has a much easier rollback path if something goes wrong.

Note that these steps will also work for upgrading from TFS 2012 RC to RTM, or RTM to Update 1.

These are the steps to migrate and upgrade to a new environment:

  1. Send an email to let everyone know the TFS server will be offline.
  2. Take the TFS 2010 server offline
  3. Copy the TFS 2010 database backups to the TFS server or the new SQL Server instance. Make sure the URL is accessible from the TFS server via a network share.
  4. Install Team Foundation Server 2012 or TFS 2012 Update 1 (see Damian Brady's experiences).
  5. Make sure you have access to coffee while it's installing - it could take a while!
    ssw coffee
  6. After the install has completed, the Team Foundation Server Configuration Center will start

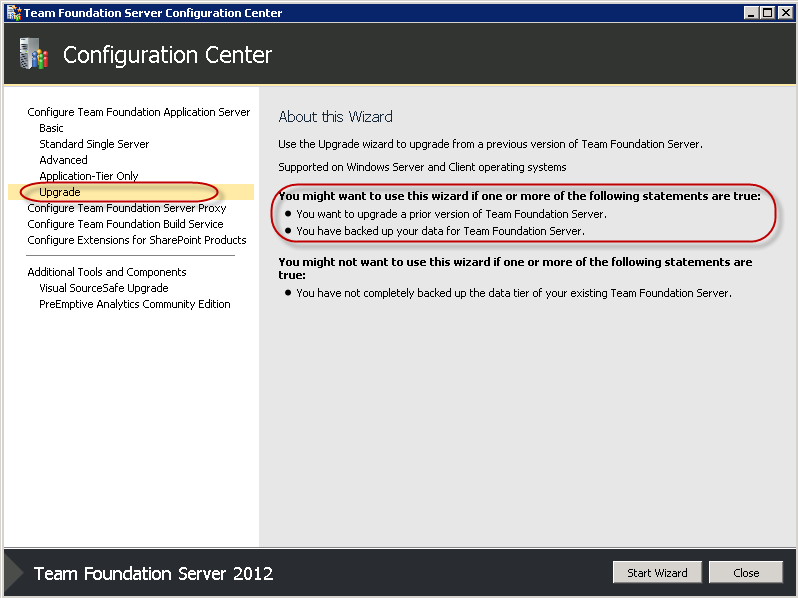

  7. Select Upgrade | Start Wizard tfs upgrade existing
  8. Launch the Database Restore tool by clicking on the link
  9. If necessary, change the Target SQL Server Instance and click Connect

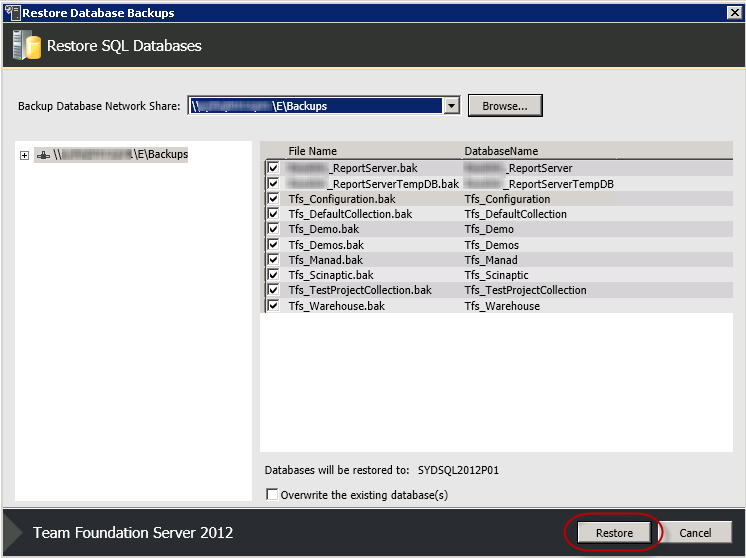

  10. In the Restore Database screen, Browse, then navigate to the folder with your database backups. Make sure all of them are ticked, then click Restore. tfs restore dbs
  11. Click Close, then click Next in the Upgrade Wizard

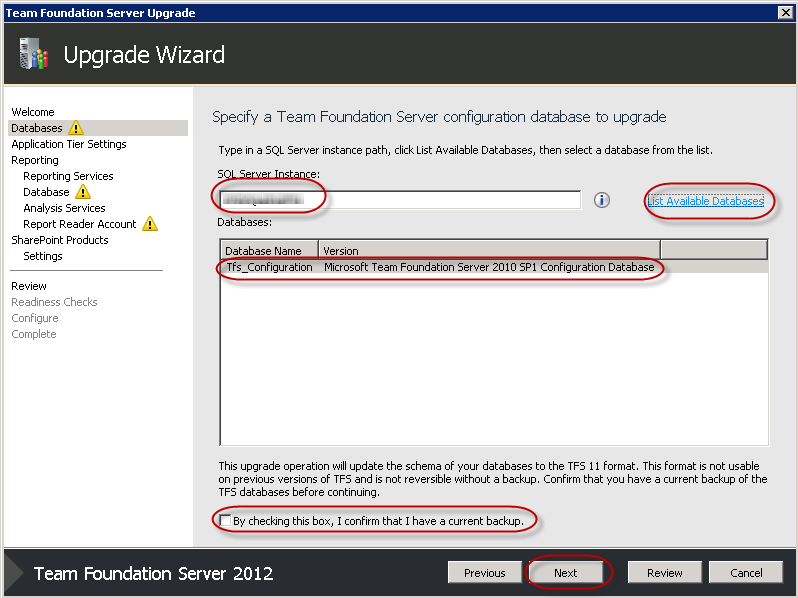

  12. Choose the configuration database by specifying the SQL Server Instance and clicking List Available Databases
  13. Check "By checking this box, I confirm that I have a current backup.", then click Next tfs config db
  14. Leave Network Service as the service account for the Application Tier, then click Next
  15. Check the checkbox to confirm we want to configure Reporting Services, then click Next

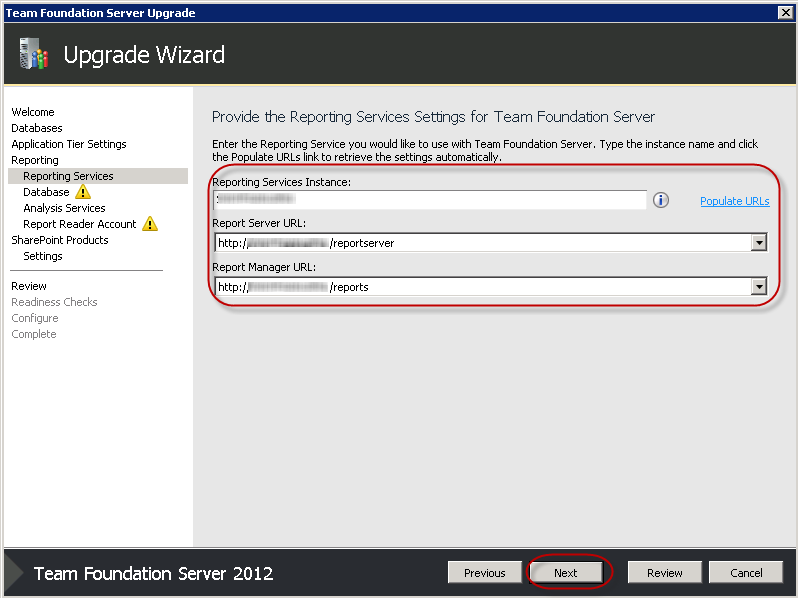

  16. Make sure the Reporting Services instance and URLs are correct, then click Next tfs config reporting

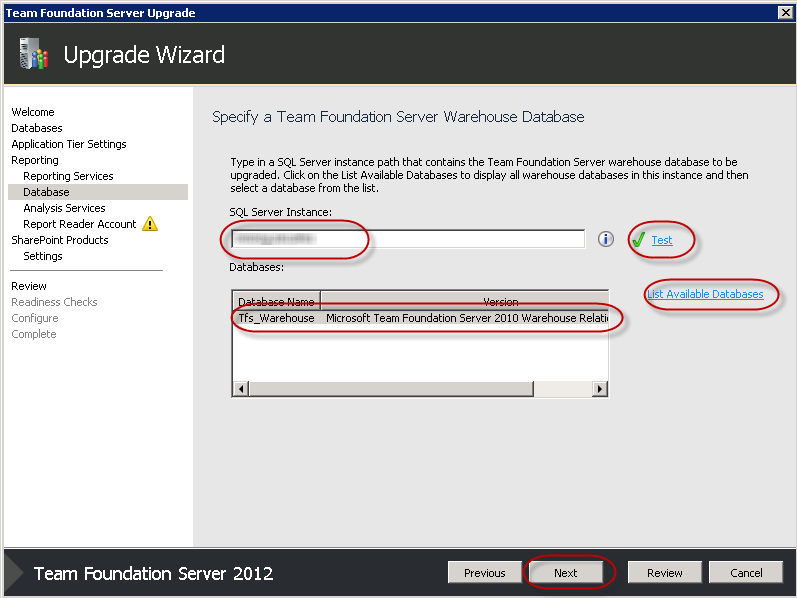

  17. Update the SQL Server Instance for our Warehouse Database, and click Test to test the connection
  18. Click List Available Databases and check the Tfs_Warehouse database is shown, then click Next tfs warehouse
  19. Click Next on the Analysis Services page

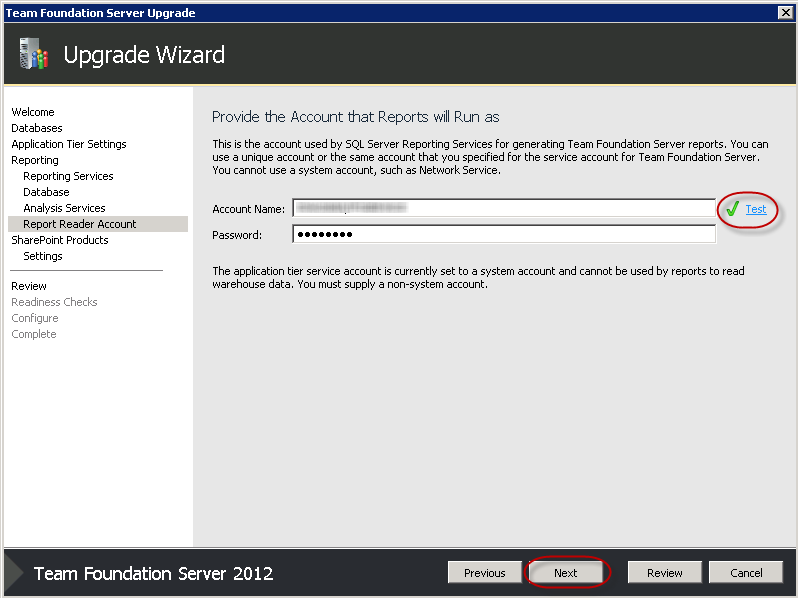

  20. Provide details of the TFSService account your reports will run as then click Next tfs reports run as
  21. Check the checkbox to say we want to configure SharePoint, then click Next

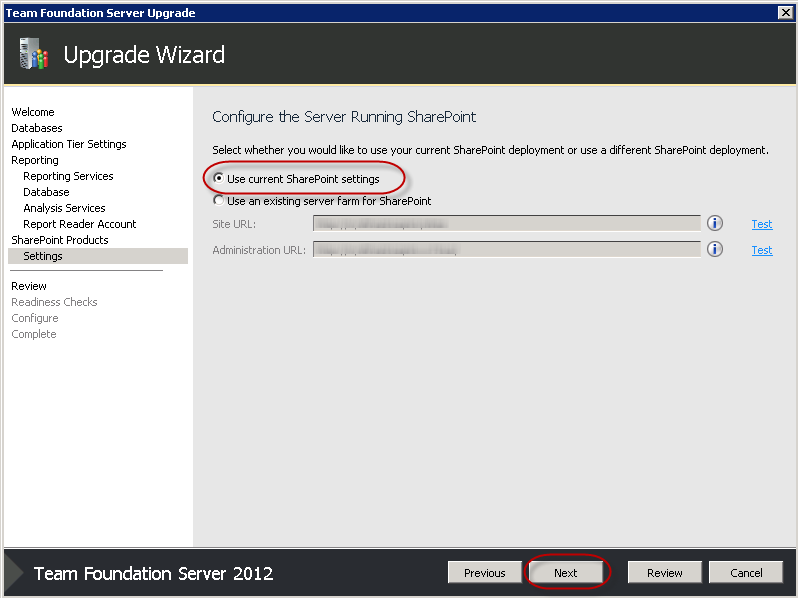

  22. Choose "Use current SharePoint settings", then click Next tfs sharepoint

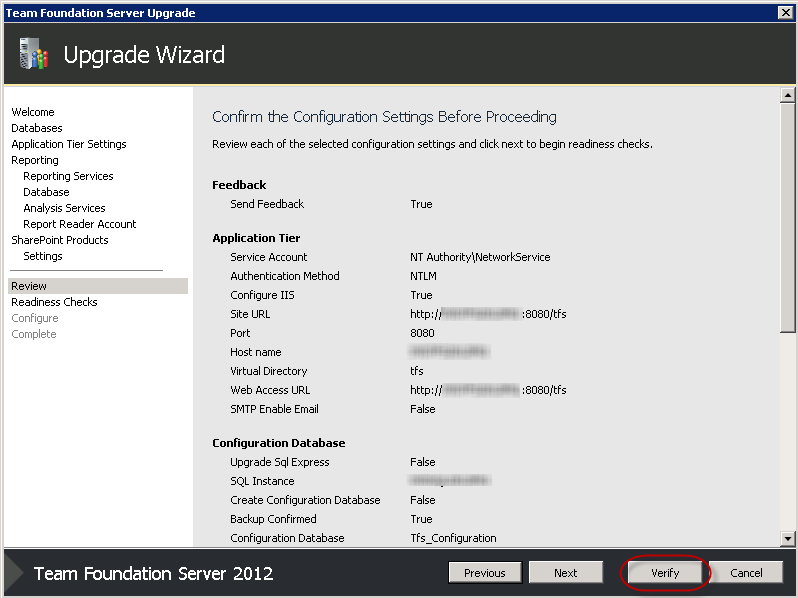

  23. Confirm the details on the Summary page and click Verify tfs summary Note: At this point, you may be asked to reboot and start the wizard again. Don't despair - it's quicker the second time!

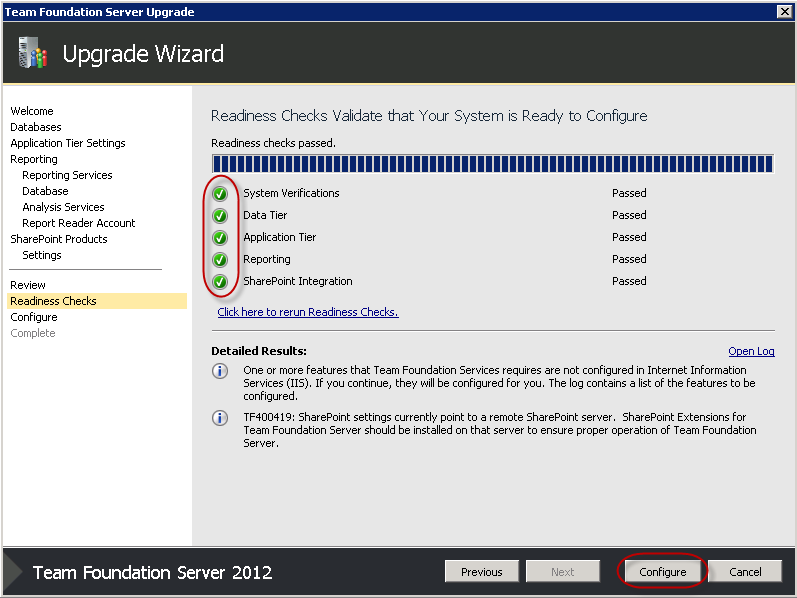

  24. Once you have all green ticks, click Configure tfs final configure
  25. Have a coffee
    ssw coffee

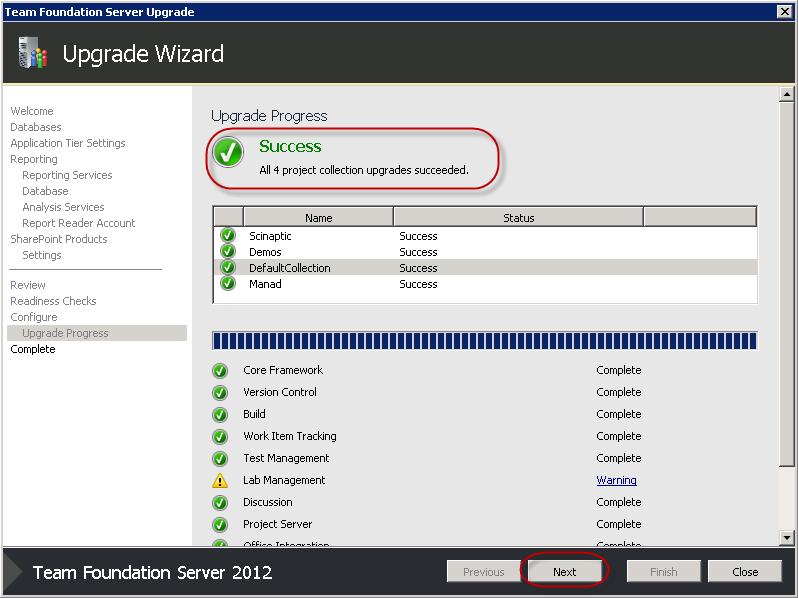

  26. Click Next tfs upgrade complete
  27. Click Close, then Close again.
  28. Change the DNS entries for your TFS server to point to the new TFS 2012 server tfs dns Note: It's a good idea to get the SysAdmins involved at this stage
Damian BradyDamian Brady
