Do you know how to use Connection Strings?

Last updated by William Liebenberg [SSW] on 09 Jun 2021 09:48 am (13 days ago) See History

Accessing your application configuration and secret values is easily done via the IConfiguration interface (from Microsoft.Extensions.Configuration.Abstractions).

However, this convenience can lead you down the path of loosely typed secret handling (everything is a string) and can cause maintenance overhead. This is bad!

lockedBox
Figure: Keep your secrets safe

Luckily there is a better way to avoid these issues and we are able to consume our configuration and secrets with strongly typed classes.

Option #1 - Using connection strings directly in code

public class MyDataService
{
    private async Task<string> GetCustomerDetails(CustomerDetailsQuery request)
    {
        var sql = @"SELECT * FROM CustomerDetails WHERE CustomerId = @auctionId";
        await using var db = new SqlConnection("Server=localhost;Database=Northwind;Trusted_connection=false;user id=sa;pwd=admin");
        return (await db.QueryAsync<string>(sql,
            new
            {
                customerId = request.CustomerId
            })
            ).SingleOrDefault();
    }
}

Figure: Bad Example - Option #1 Connection strings do not belong in your code, anyone seeing this could access your database

Option #2 - Using connection strings in appsettings.json

// In appsettings.json
{
  "ApplicationSecrets": {
    "LicenceKey": "ABCD-1234-HIJK",
    "ConnectionString": "Server=localhost;Database=Northwind;Trusted_connection=false;user id=sa;pwd=admin"
  }
}

Figure: Bad Example - Option #2 Connection strings do not belong in your appsettings.json either, once committed to version control they are hard to remove

Option #3 - Referencing loosely typed connection strings

public class MyDataService
{
    public readonly string _connectionString;

    public MyDataService(IConfiguration config)
    {
        // In Production, your connection string will be read from Key Vault instead of appsettings.json
	// Note: we are grabbing the connection string setting directly from config as a string using another magic string - this is bad!
        _connectionString = config["ApplicationSecrets:SqlConnectionString"];
    }

    private async Task<string> GetCustomerDetails(CustomerDetailsQuery request)
    {
        var sql = @"SELECT * FROM CustomerDetails WHERE CustomerId = @auctionId";
        await using var db = new SqlConnection(_connectionString);
        return (await db.QueryAsync<string>(sql,
            new
            {
                customerId = request.CustomerId
            })
            ).SingleOrDefault();
    }
}

Figure: Bad Example - Option #3 Referencing a loosely typed connection string defined in application settings

Option #4 - User Secrets

An alternative to putting secrets into appsettings.json is via User Secrets

User secrets provide you with a secret file (called secrets.json) that is stored on your local machine away from the current code repository and cannot be committed by accident.

To access your User Secrets:

  1. Right-click your project in Visual Studio
  2. Select Manage User Secrets
  3. Edit the content of your secrets.json file
  4. Save the file

user secrets
Figure: OK Example - Option #4 User secrets (secrets.json)

// In ApplicationSecrets.cs
public class ApplicationSecrets
{
    public string SqlConnectionString { get; set; }
    public string LicenseKey { get; set; }
}

Figure: Good Example - The strongly typed class containing application secrets

// In Startup.cs
// This method gets called by the runtime. Use this method to add services to the container.
public void ConfigureServices(IServiceCollection services)
{
    // Bind the "ApplicationSecrets" config section to an instance of the `ApplicationSecrets` class
    services.Configure<ApplicationSecrets>(Configuration.GetSection("ApplicationSecrets"));
    ...
}

Figure: Good Example - Binding the ApplicationSecrets section (from appsettings.json or secrets.json) to an instance of the ApplicationSecrets class

// In MyDataService.cs
public class MyDataService
{
    // Note how we use a strongly typed class here to contain all our settings - this is good!
    public readonly ApplicationSecrets _settings;

    public MyDataService(IOptions<ApplicationSecrets> settings)
    {
        // In Production, your connection string will be read from Key Vault
        _settings = settings.Value;
    }

    private async Task<string> GetCustomerDetails(CustomerDetailsQuery request)
    {
        var sql = @"SELECT * FROM CustomerDetails WHERE CustomerId = @auctionId";
        await using var db = new SqlConnection(_settings.SqlConnectionString);
        return (await db.QueryAsync<string>(sql,
            new
            {
                customerId = request.CustomerId
            })
            ).SingleOrDefault();
    }
}

Figure: Good Example - Consuming strongly typed application secrets

Option #5 - Integrating Azure Key Vault into your ASP.NET Core application

In .NET 5 we can use Azure Key Vault to securely store our connection strings away from prying eyes.

Azure Key Vault is great for keeping your secrets secret because you can control access to the vault via Access Policies. The access policies allows you to add Users and Applications with customized permissions. Make sure you enable the System assigned identity for your App Service, this is required for adding it to Key Vault via Access Policies.

You can integrate Key Vault directly into your ASP.NET Core application configuration. This allows you to access Key Vault secrets via IConfiguration.

public static IHostBuilder CreateHostBuilder(string[] args) =>
	Host.CreateDefaultBuilder(args)
		.ConfigureWebHostDefaults(webBuilder =>
		{
			webBuilder
				.UseStartup<Startup>()
				.ConfigureAppConfiguration((context, config) =>
				{
					// To run the "Production" app locally, modify your launchSettings.json file
					// -> set ASPNETCORE_ENVIRONMENT value as "Production"
					if (context.HostingEnvironment.IsProduction())
					{
						IConfigurationRoot builtConfig = config.Build();

						// ATTENTION:
						//
						// If running the app from your local dev machine (not in Azure AppService),
						// -> use the AzureCliCredential provider.
						// -> This means you have to log in locally via `az login` before running the app on your local machine.
						//
						// If running the app from Azure AppService
						// -> use the DefaultAzureCredential provider
						//
						TokenCredential cred = context.HostingEnvironment.IsAzureAppService() ?
							new DefaultAzureCredential(false) : new AzureCliCredential();

						var keyvaultUri = new Uri($"https://{builtConfig["KeyVaultName"]}.vault.azure.net/");
						var secretClient = new SecretClient(keyvaultUri, cred);
						config.AddAzureKeyVault(secretClient, new KeyVaultSecretManager());
					}
				});
		});

Good Example - Option #5 For a complete example, refer to this sample application

TIP: You can detect if your application is running on your local machine or on an Azure AppService by looking for the WEBSITE_SITE_NAME environment variable. If null or empty, then you are NOT running on an Azure AppService.

public static class IWebHostEnvironmentExtensions
{
	public static bool IsAzureAppService(this IWebHostEnvironment env)
	{
		var websiteName = Environment.GetEnvironmentVariable("WEBSITE_SITE_NAME");
		return string.IsNullOrEmpty(websiteName) is not true;
	}
}

Setting up your Key Vault correctly

In order to access the secrets in Key Vault, you (as User) or an Application must have been granted permission via a Key Vault Access Policy.

Applications require at least the LIST and GET permissions, otherwise the Key Vault integration will fail to retrieve secrets.

access policies

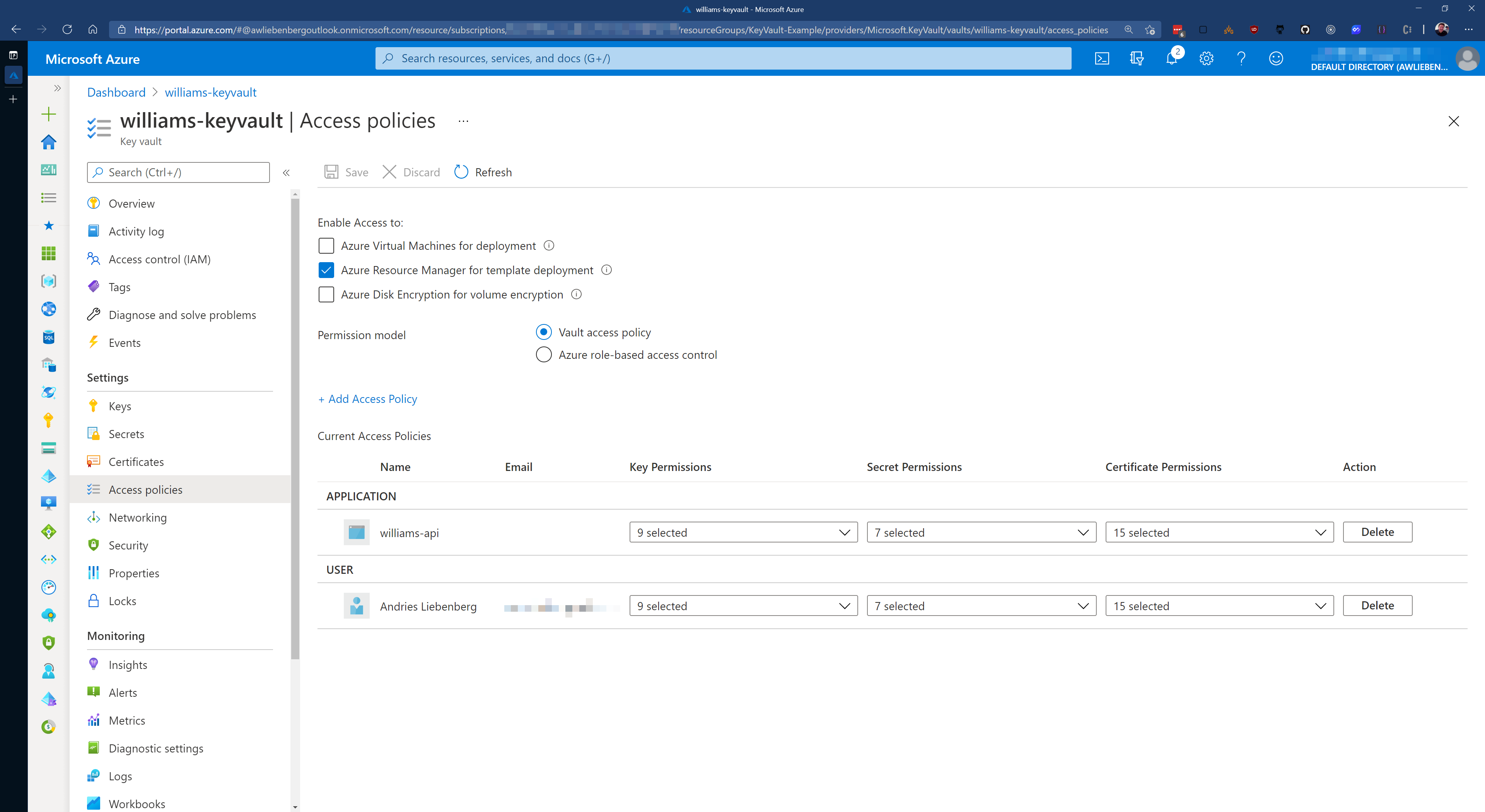

Figure: Key Vault Access Policies - Setting permissions for Applications and/or Users

Azure Key Vault and App Services can easily trust each other by making use of System assigned identities. Azure takes care of all the complicated logic behind the scenes for these two services to communicate with each other - reducing the complexity for application developers.

So, make sure that your Azure App Service has the System assigned identity enabled.

Once enabled, you can create a Key Vault Access policy to give your App Service permission to retrieve secrets from the Key Vault.

identity

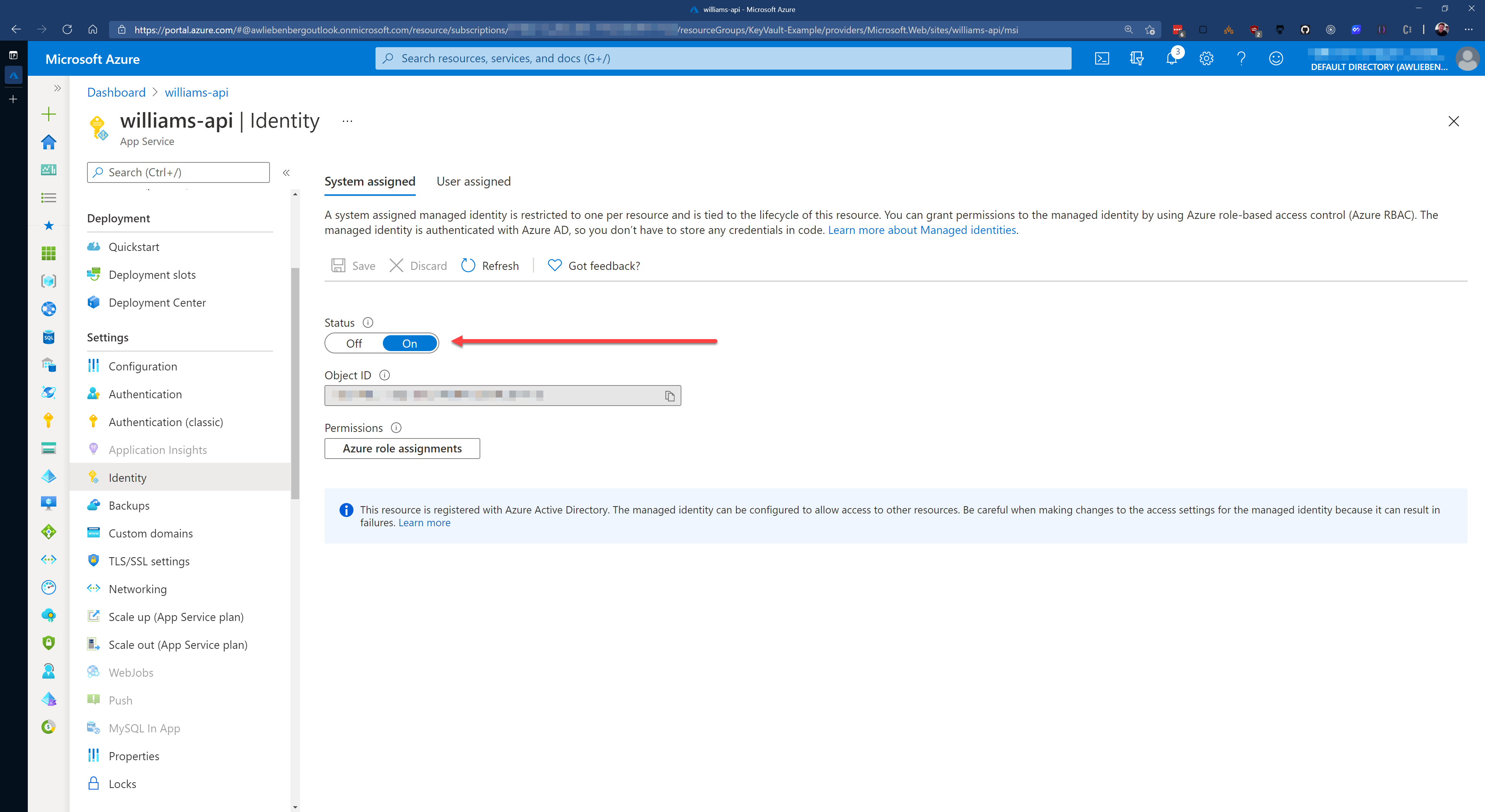

Figure: Enabling the System assigned identity for your App Service - this is required for adding it to Key Vault via Access Policies

Adding secrets into Key Vault is easy.

  1. Create a new secret by clicking on the Generate/Import button
  2. Provide the name
  3. Provide the secret value
  4. Click Create

add a secret

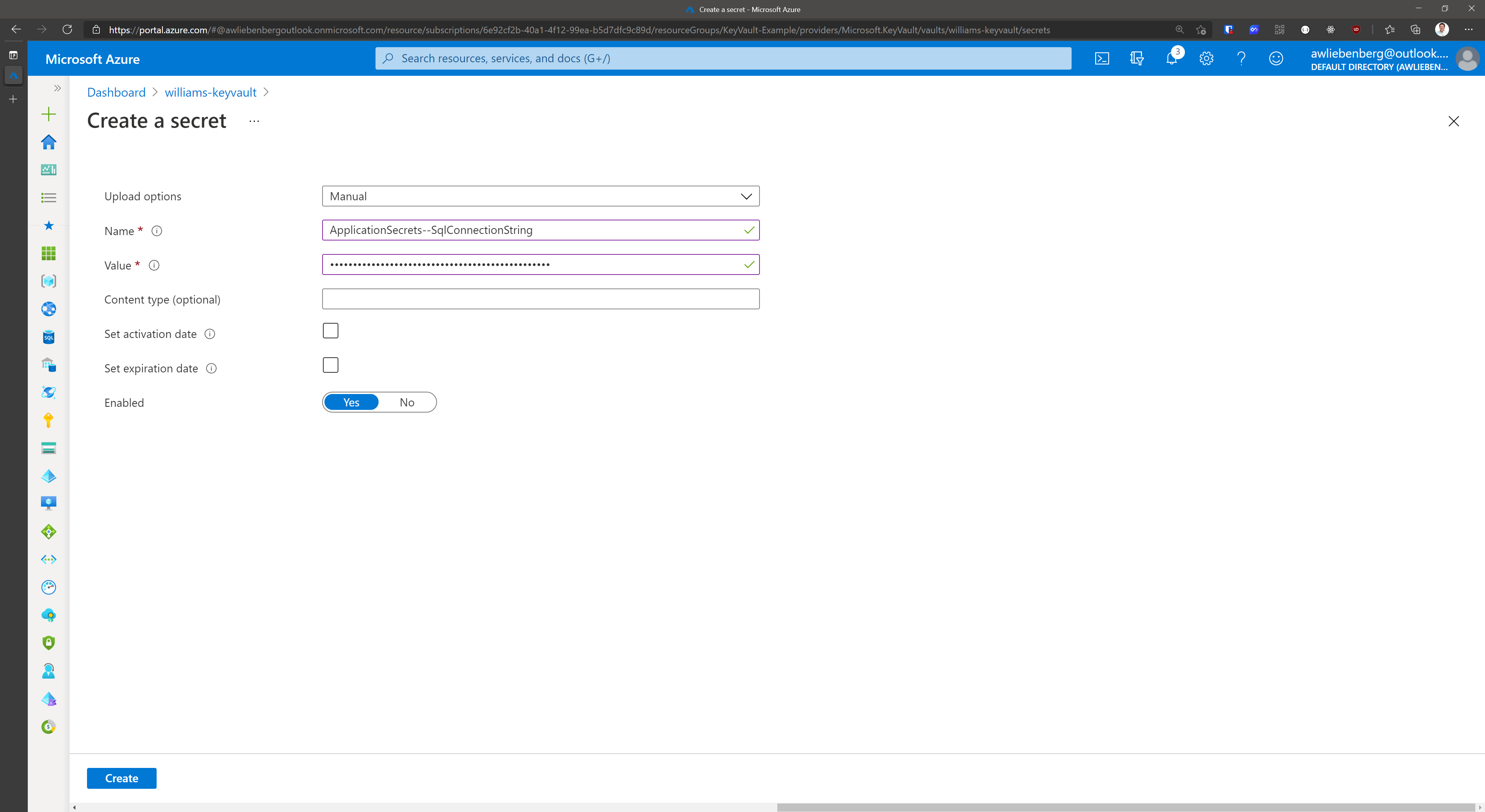

Figure: Creating the SqlConnectionString secret in Key Vault.

secrets

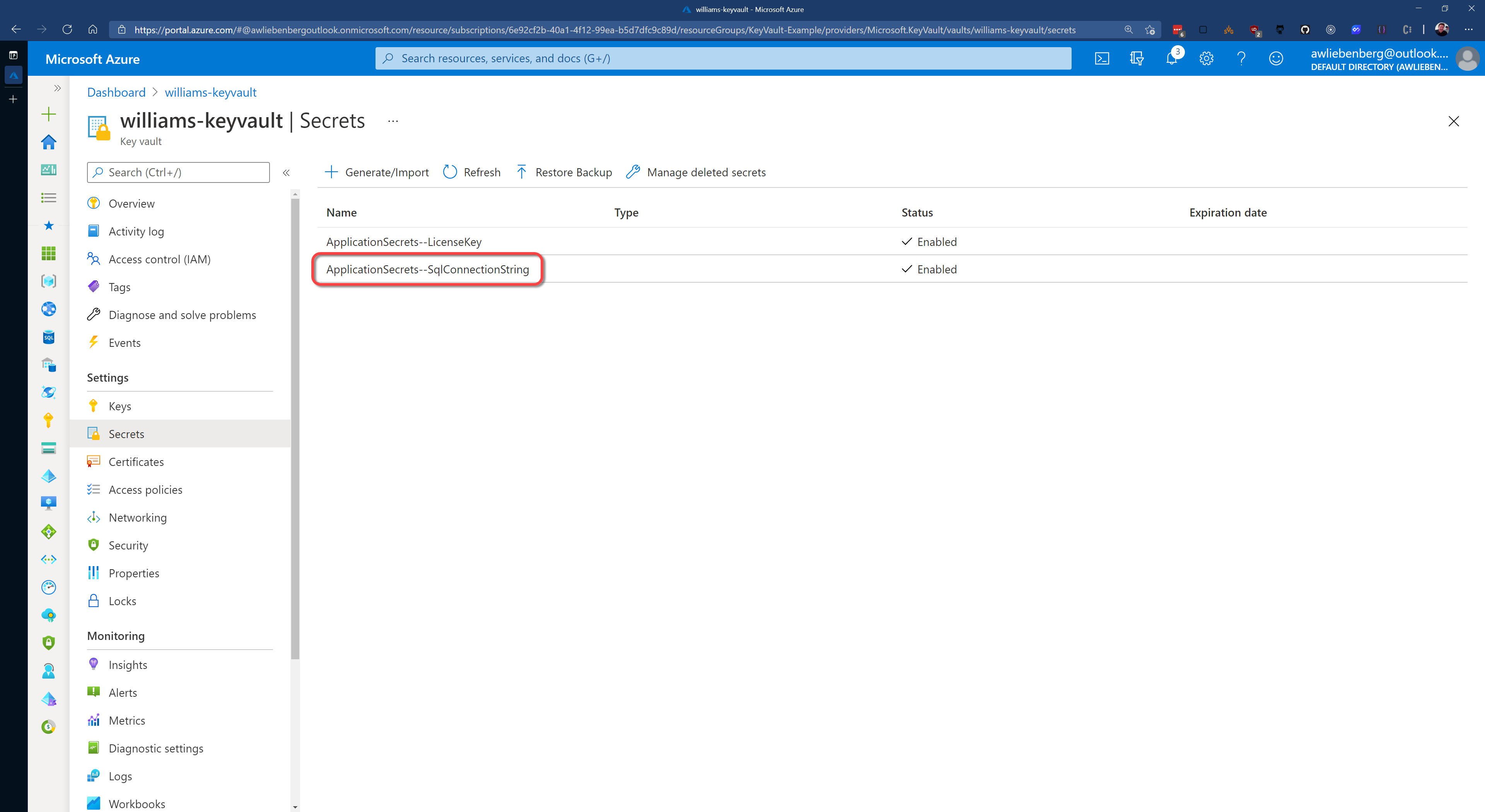

Figure: SqlConnectionString stored in Key Vault. Note the ApplicationSecrets section is indicated by ApplicationSecrets-- instead of ApplicationSecrets:

As a result of storing secrets in Key Vault, your Azure App Service configuration (app settings) will be nice and clean. You should not see any fields that contain passwords or keys. Only basic configuration values.

configuration

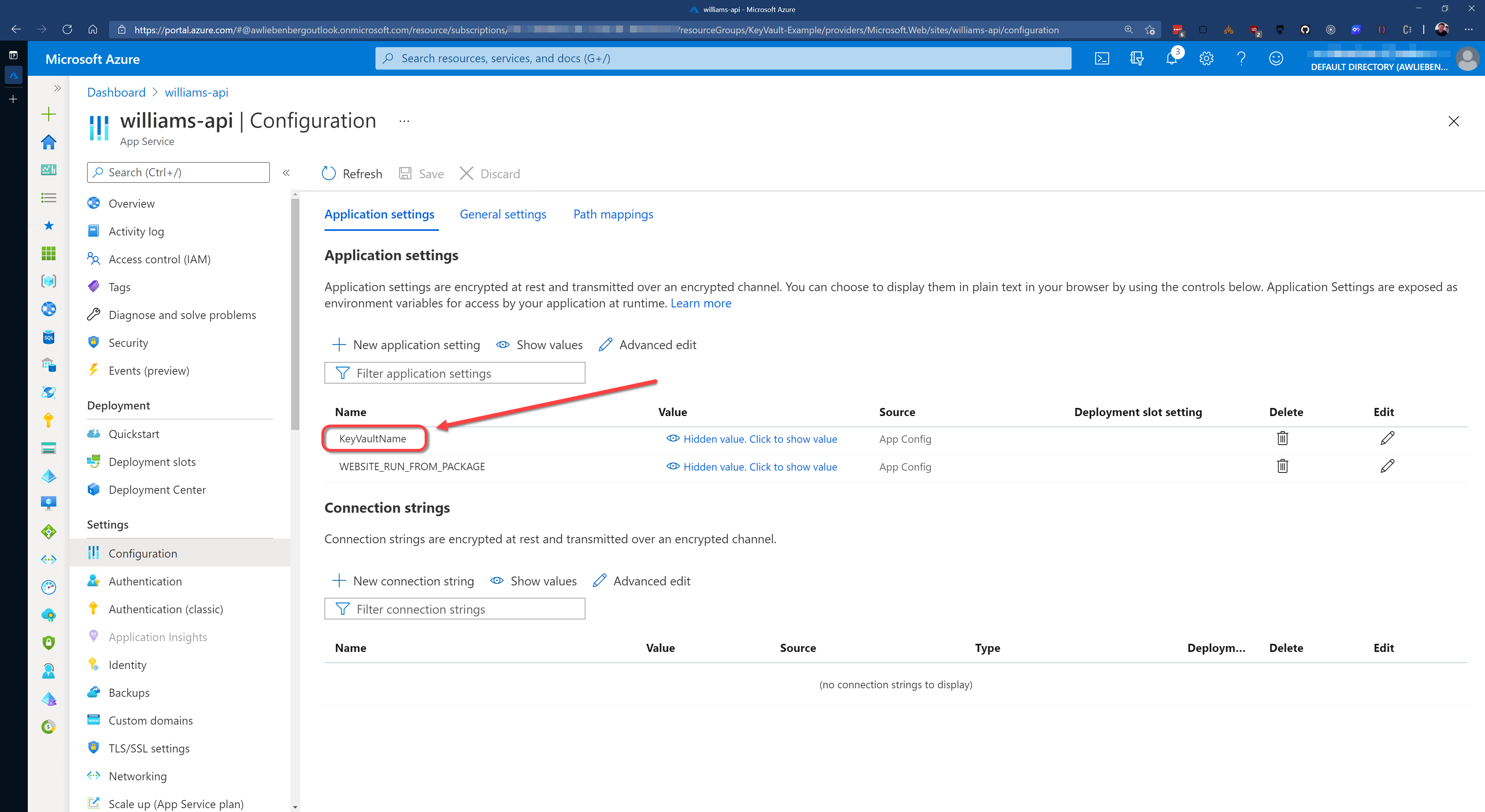

Figure: Your WebApp Configuration - no passwords or secrets, just a name of the Key vault that it needs to access

Watch SSW's William Liebenberg explain Connection Strings and Key Vault in more detail

History of Connection Strings

In .NET 1.1 we used to store our connection string in a configuration file like this:

<configuration>
     <appSettings>
          <add key="ConnectionString" value ="integrated security=true;
           data source=(local);initial catalog=Northwind"/>
     </appSettings>
</configuration>

and access this connection string in code like this:

SqlConnection sqlConn =
new SqlConnection(System.Configuration.ConfigurationSettings.
AppSettings["ConnectionString"]);

Historical example - old ASP.NET 1.1 way, untyped and prone to error

In .NET 2.0 we used strongly typed settings classes:

Step 1: Setup your settings in your common project. E.g. Northwind.Common

ConnStringNET2 Settings

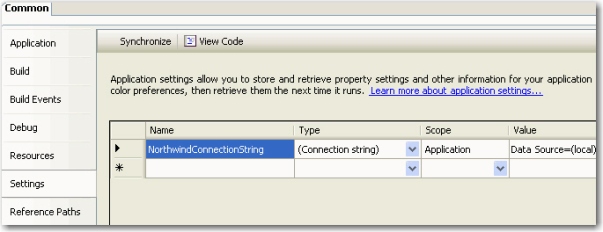

Figure: Settings in Project Properties

Step 2: Open up the generated App.config under your common project. E.g. Northwind.Common/App.config

Step 3: Copy the content into your entry applications app.config. E.g. Northwind.WindowsUI/App.config The new setting has been updated to app.config automatically in .NET 2.0

<configuration>
      <connectionStrings>
         <add name="Common.Properties.Settings.NorthwindConnectionString"
              connectionString="Data Source=(local);Initial Catalog=Northwind;
              Integrated Security=True"
              providerName="System.Data.SqlClient" />
        </connectionStrings>
 </configuration>

Then you can access the connection string like this in C#

SqlConnection sqlConn =
 new SqlConnection(Common.Properties.Settings.Default.NorthwindConnectionString);

Historical example - access our connection string by strongly typed generated settings class...this is no longer the best way to do it
