Do you use Validator controls?

Loading last updated info...

Validation is extremely important on a data entry form. There are two ways to do validation:

ErrorProvider control The ErrorProvider control is code intensive. You must manually handle the Validating event of each control you want to validate, in addition to manually running the validation methods when the OK or Apply button is clicked.

Private Sub productNameTextBox_Validating(ByVal sender As Object, _
   ByVal e As System.ComponentModel.CancelEventArgs) Handles _
   productNameTextBox.Validating

   ValidateProductName(False)

End Sub

Private Function ValidateProductName(ByVal force As Boolean) _
   As Boolean

   If Me.productNameTextBox.Text.Length = 0 Then
      Me.errorProvider.SetError(Me.productNameTextBox,
         "You must enter the Product Name.")

      If force Then
         MessageBox.Show("You must enter the Product Name.", _
            Me.Text, MessageBoxButtons.OK, MessageBoxIcon.Warning)
      End If

      Return False
   Else
      Me.errorProvider.SetError(Me.productNameTextBox, _
         String.Empty)
      Return True
   End If

End Function

Private Function ValidateInput() As Boolean

   Dim force As Boolean = True
   Dim isValid As Boolean = ValidateProductID(force)

   If Not isValid Then
      force = False
   End If

   isValid = ValidateProductName(force)

   If Not isValid Then
      force = False
   End If

   isValid = ValidateCategory(force)

   Return isValid

End Function

Private Sub okButton_Click(ByVal sender As Object, _
   ByVal e As System.EventArgs)

   If Me.ValidateInput() Then
      'Test
   End If

End Sub

❌ Figure: Bad example - lots of code but no balloon tooltips

Private Sub productNameTextBox_Validating(ByVal sender As Object, _
   ByVal e As System.ComponentModel.CancelEventArgs) _
   Handles productNameTextBox.Validating

   ValidateProductName(False)

End Sub

Private Function ValidateProductName(ByVal force As Boolean) _
   As Boolean

   If Me.productNameTextBox.Text.Length = 0 Then
      Me.errorProvider.SetError(Me.productNameTextBox, _
         "You must enter the Product Name.")

      If force Then
         If Me.balloonToolTip.IsSupported Then
            Me.balloonToolTip.SetToolTip(Me.productNameTextBox, _
               "You must enter the Product Name.")
         Else
            MessageBox.Show("You must enter the Product Name.", _
               Me.Text, MessageBoxButtons.OK,
               MessageBoxIcon.Warning)
         End If
      End If

      Return False
   Else
      Me.errorProvider.SetError(Me.productNameTextBox, _
         String.Empty)
      Return True
   End If

End Function

Private Function ValidateInput() As Boolean

   Dim force As Boolean = True
   Dim isValid As Boolean = ValidateProductID(force)

   If Not isValid Then
      force = False
   End If

   isValid = ValidateProductName(force)

   If Not isValid Then
      force = False
   End If

   isValid = ValidateCategory(force)

   Return isValid

End Function

Private Sub okButton_Click(ByVal sender As Object, _
   ByVal e As System.EventArgs)

   If Me.ValidateInput() Then
      'Test
   End If

End Sub

✅ Figure: Good example - lots of code but balloon tooltips are used

Note: The component for balloon tooltips can be found in the SSW .NET Toolkit.

The error provider has the advantage over the extended provider that it can be used with balloon tooltips. If you are not using balloon tooltips, however, the error provider should not be used.

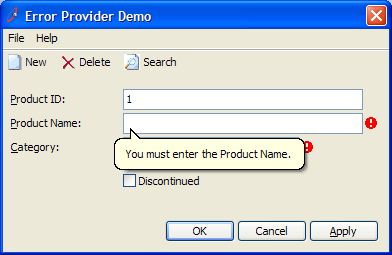

Figure: .NET ErrorProvider Control with a custom balloon tooltip

SSW Extended ProviderThe SSW Extended Provider integrates with the ErrorProvider control to provide the same functionality, but requires no code to implement (everything can be done in the Designer).

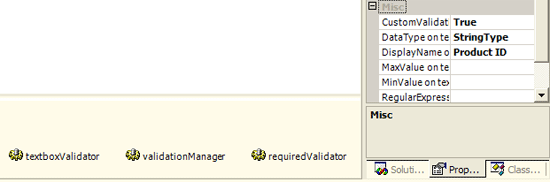

Figure: SSW Extended Provider controls and properties on a TextBox

We have a program called SSW .NET Toolkit that implements this cool Error Provider Control

Private Sub productNameTextBox_Validating(ByVal sender As Object, _

ByVal e As System.ComponentModel.CancelEventArgs) Handles _

productNameTextBox.Validating

ValidateProductName(False)

End Sub

Private Function ValidateProductName(ByVal force As Boolean) _

As Boolean

If Me.productNameTextBox.Text.Length = 0 Then

Me.errorProvider.SetError(Me.productNameTextBox,

"You must enter the Product Name.")

If force Then

MessageBox.Show("You must enter the Product Name.", _

Me.Text, MessageBoxButtons.OK, MessageBoxIcon.Warning)

End If

Return False

Else

Me.errorProvider.SetError(Me.productNameTextBox, _

String.Empty)

Return True

End If

End Function

Private Function ValidateInput() As Boolean

Dim force As Boolean = True

Dim isValid As Boolean = ValidateProductID(force)

If Not isValid Then

force = False

End If

isValid = ValidateProductName(force)

If Not isValid Then

force = False

End If

isValid = ValidateCategory(force)

Return isValid

End Function

Private Sub okButton_Click(ByVal sender As Object, _

ByVal e As System.EventArgs)

If Me.ValidateInput() Then

'Test

End If

End Sub

Private Sub productNameTextBox_Validating(ByVal sender As Object, _

ByVal e As System.ComponentModel.CancelEventArgs) _

Handles productNameTextBox.Validating

ValidateProductName(False)

End Sub

Private Function ValidateProductName(ByVal force As Boolean) _

As Boolean

If Me.productNameTextBox.Text.Length = 0 Then

Me.errorProvider.SetError(Me.productNameTextBox, _

"You must enter the Product Name.")

If force Then

If Me.balloonToolTip.IsSupported Then

Me.balloonToolTip.SetToolTip(Me.productNameTextBox, _

"You must enter the Product Name.")

Else

MessageBox.Show("You must enter the Product Name.", _

Me.Text, MessageBoxButtons.OK,

MessageBoxIcon.Warning)

End If

Return False

Else

Me.errorProvider.SetError(Me.productNameTextBox, _

String.Empty)

Return True

End If

End Function

Private Function ValidateInput() As Boolean

Dim force As Boolean = True

Dim isValid As Boolean = ValidateProductID(force)

If Not isValid Then

force = False

End If

isValid = ValidateProductName(force)

If Not isValid Then

force = False

End If

isValid = ValidateCategory(force)

Return isValid

End Function

Private Sub okButton_Click(ByVal sender As Object, _

ByVal e As System.EventArgs)

If Me.ValidateInput() Then

'Test

End If

End Sub
