Do you look at the architecture of JavaScript projects?

Last updated by Brady Stroud [SSW] about 1 month ago.See history

JavaScript projects (for example using Angular, React, or Vue) can have unnecessary libraries that take excessive size in the build bundle. It can cause huge impacts on the performance of the application.

JavaScript bundle analyzers are tools that visualize the sizes and dependencies of libraries used in JavaScript projects. It helps to monitor the size of the compiled bundle in order to maintain the optimal performance of the final build.

Here are a few options for the bundle analysis in JavaScript projects:

For Angular projects use webpack-bundle-analyzer

This is a popular tool for Angular projects which analyses a webpack stats JSON file generated by the Angular CLI during the build. To produce the bundle analysis using webpack-bundle-analyzer in Angular projects, follow the instructions in this blog.

architecture good angular

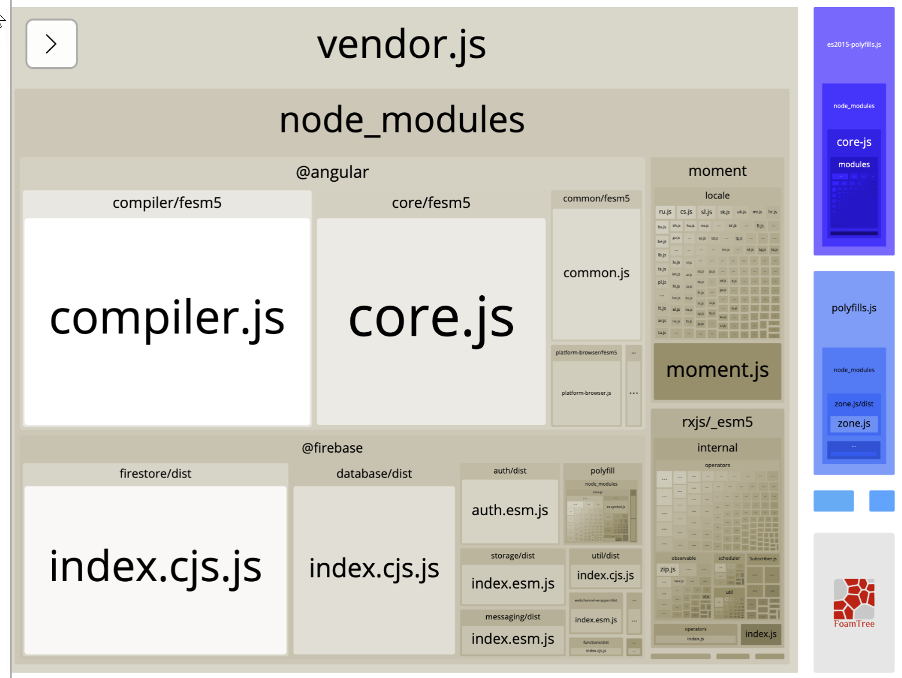

Figure: Good example – use webpack-bundle-analyzer for Angular applications

For React projects sadly webpack-bundle-analyzer is too hacky to get going

Unfortunately, the create-react-app from version 3 has removed the “--stats" flag which produces the webpack stats file used by webpack-bundle-analyzer. Hence, webpack-bundle-analyzer can only be used as a plugin in these React projects, as described in the following blog: Optimize your React application with webpack-bundle-analyzer

architecture bad react

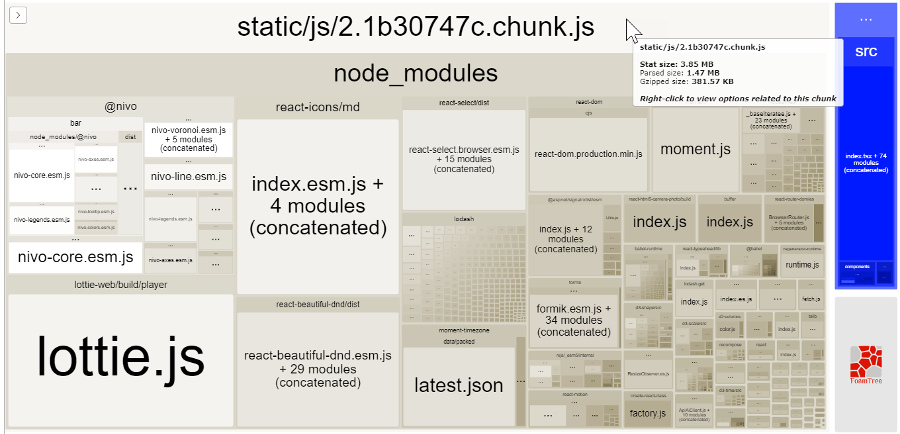

Figure: Bad example – webpack-bundle-analyzer is not user friendly for React applications

For React projects use source-map-explorer

This tool uses a bundle's generated source map files to analyse the size and composition of a bundler and render a visualization of the bundle similar to what webpack-bundle-analyzer does. To create a bundle analysis for a React project, follow the instructions from the Create React App documentation: https://create-react-app.dev/docs/analyzing-the-bundle-size/

architecture good react

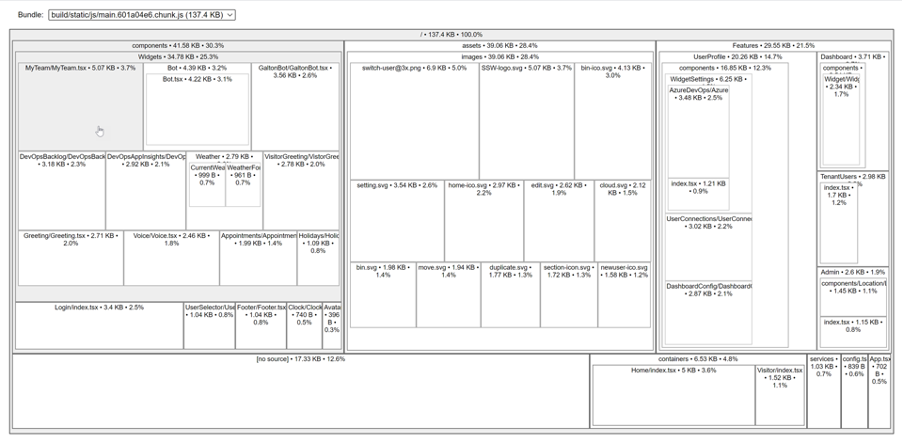

Figure: Good example – use source-map-explorer on React projects

Screenshots of these diagrams should be included in the project's wiki as per the rule Do you make awesome documentation?
